Analysis of the Differences between USB 3.0, 3.2 Gen 1, and 3.2 Gen 2
After multiple updates, USB standards and their specifications have become quite challenging to understand. This article will answer questions like "What are the differences between USB 3.2 Gen 1 and Gen 2?" and explore which standard is most suitable for your system, helping you gain a comprehensive understanding of USB standards.

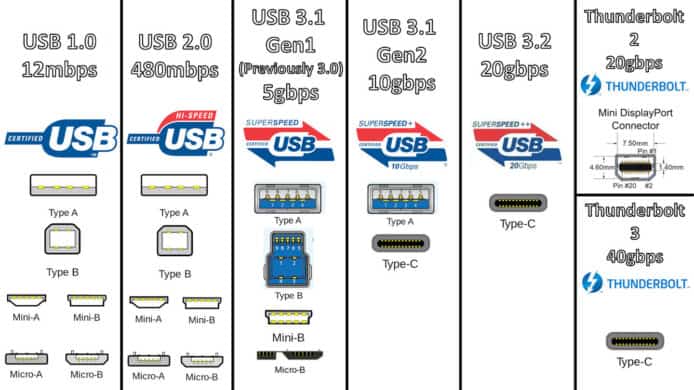

The Evolution of USB 3.0
USB 3.0 was released in 2008, marking the third major revision of the USB standard. Compared to USB 2.0, which was first introduced in 2000 with a transmission speed of only 480 Mbit/s, USB 3.0 represented a significant leap forward. Nowadays, we no longer use the term "USB 3.0"; instead, it has been incorporated into the current USB 3.2 standard, namely USB 3.2 Gen 1. Therefore, USB 3.0 and USB 3.2 Gen 1 are essentially the same concept.
The USB Implementers Forum (USB-IF) is the organization responsible for maintaining USB standards, performance specifications, and compliance. Its goal in standardizing naming and specifications is to make it easier for developers and manufacturers to access relevant information, ensuring correct product development and backward compatibility. Additionally, USB-IF stipulates naming conventions and logos for USB cables and devices.
Speed Differences between USB 3.2 Gen 1 and Gen 2
The only difference between USB 3.2 Gen 1 and USB 3.2 Gen 2 lies in their transmission speeds. USB 3.2 Gen 1 supports a maximum speed of 5Gbit/s, while USB 3.2 Gen 2 can reach up to 10Gbit/s. Initially, USB-IF intended to distinguish these two standards using "SuperSpeed USB" and "SuperSpeed USB+", but this was not adopted by the industry. Typically, OEM manufacturers indicate speeds of 5Gbps or 10Gbps in their specifications to highlight the differences between the two standards. Other industry players simply refer to them as "USB 3.2 Gen 1" or "USB 3.2 Gen 2".
Innovation of USB 3.2 Gen 2x2
Nearly a decade after the release of the second-generation USB interface, USB technology made even greater strides with the introduction of USB 3.2 2x2 in 2017. At this point, USB 3.2 established three distinct versions, each with its unique name and meaning.
With the advent of USB 3.2 Gen 2x2, the industry's mainstream USB-A interface has gradually been replaced by USB-C. Since USB-C supports higher data transfer speeds and can charge other peripheral devices more quickly, it has naturally become the primary interface for USB 3.2 Gen 2x2.
New Breakthroughs with USB4
The next major advancement in USB technology is USB4. It offers a data transfer speed of 40Gbit/s, is compatible with Thunderbolt 3, and only supports USB-C connectors or ports. USB4 increases bandwidth and aims to integrate the USB-C connector ecosystem, minimizing user confusion.
Several key design features of USB4 include:
Enabling display, data, and loading/storage functions through a single USB-C connector.
Universal compatibility with existing USB and Thunderbolt products.
Defining port functions to provide a predictable and consistent user experience.
Enhancing host flexibility to configure bandwidth, power management, and other performance-related parameters according to system requirements.
USB and its specifications have made significant progress since their initial introduction and will continue to evolve in the future. Regarding USB 3.2 Gen 1 and Gen 2, the difference lies solely in speed and backward compatibility with USB 3.0 and USB 2.0. If you plan to upgrade your storage solution, don't forget to check the compatibility of your host device! In the future, with the introduction of new-generation USB standards and the transition to USB-C, there will be even more significant improvements.
