The Engineering Behind a High-Performance USB Hub Circuit Board
Signal integrity defines the functional ceiling of any high-speed interface product. In multi-port USB architectures, the circuit board operates as a controlled impedance transmission medium rather than a passive interconnect platform. The selection of the controller architecture, PCB stack-up, and power regulation topology directly determines throughput stability and device enumeration reliability.
This article decodes the engineering architecture behind a high-performance USB hub circuit board, focusing on controller integration, signal attenuation mitigation, and power delivery constraints in industrial applications.
The Core Controller: The Brain of the USB Hub PCB

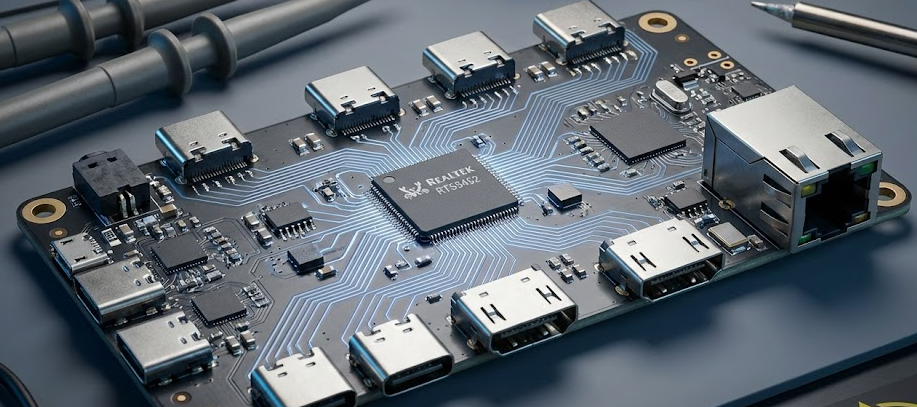

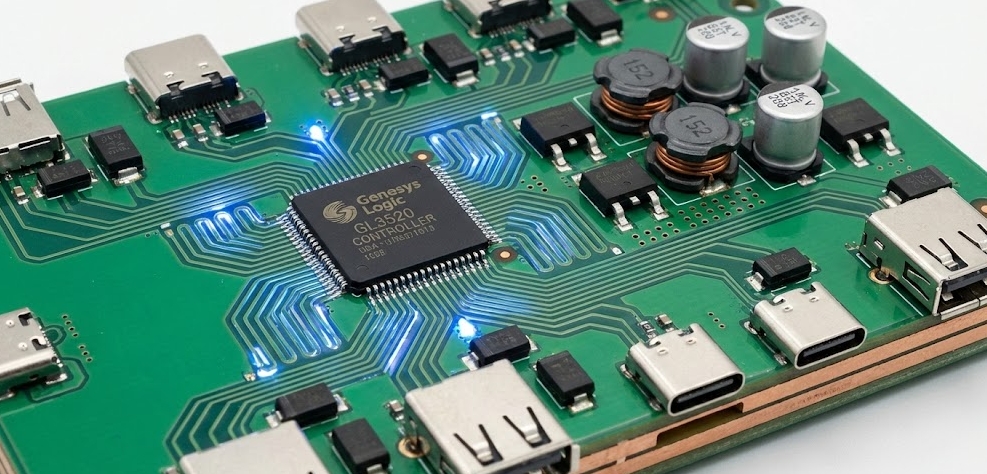

A USB hub circuit board centers around a dedicated hub controller SoC that orchestrates packet routing, transaction translation, and port arbitration. Common controllers such as Genesys Logic GL3520 and VIA Labs VL817 implement USB 3.0/3.2 hub functionality by multiplexing upstream SuperSpeed lanes and managing downstream port scheduling.
These controllers integrate:
- Transaction Translator (TT) for USB 2.0 backward compatibility
- USB PHY for SuperSpeed differential signaling
- Embedded firmware for hub enumeration and power management
Controller placement on the PCB influences routing topology and reference plane continuity. In high-port-count designs, the controller is typically positioned centrally to minimize trace length imbalance and skew across downstream differential pairs, which mitigates timing skew at 5 Gbps or higher data rates.
Signal Integrity and Impedance Control in Multi-layer Designs
High-speed USB signaling relies on differential transmission lines with a nominal 90-ohm differential impedance. Achieving impedance control on a USB hub circuit board requires controlled trace geometry, dielectric selection, and reference plane continuity.
Differential Pair Routing and Length Matching
SuperSpeed USB uses dual differential pairs for TX and RX lanes. PCB layout must enforce:
- Trace width and spacing tuned to impedance targets
- Length matching within sub-millimeter tolerance to reduce intra-pair skew
- Symmetrical routing to mitigate mode conversion
Uncontrolled differential skew introduces deterministic jitter, which reduces eye diagram margin and increases packet error rates.
2-Layer vs 4-Layer PCB EMI Behavior
Two-layer PCB designs often lack a continuous reference plane, resulting in return current discontinuities and increased electromagnetic radiation. Four-layer stack-ups provide dedicated ground and power planes, reducing loop inductance and facilitating controlled impedance routing. Empirical measurements typically show lower radiated emissions and improved signal integrity on four-layer USB 3.0 hub boards.
Low-cost two-layer PCBs frequently exhibit signal reflections and crosstalk due to impedance discontinuities at vias and connector transitions, which manifests as device disconnect events under load.
Power Delivery (PD) and Thermal Management
Multi-port USB hubs must regulate current distribution across downstream ports while maintaining upstream bus power constraints. Industrial USB hub circuit boards typically integrate DC-DC buck converters for port power regulation rather than linear regulators to mitigate thermal dissipation.
Voltage Regulation and Load Distribution
Key design considerations include:
- Current limiting per port to meet USB compliance
- Dynamic power allocation when multiple high-load devices connect
- Bulk capacitance to stabilize transient load events
Copper Weight and Thermal Dissipation
Copper weight influences thermal resistance and current-carrying capacity. A 2 oz copper layer reduces IR drop and facilitates heat spreading across the board plane, mitigating localized hotspots near power MOSFETs and inductors.
Thermal vias under power components further facilitate heat transfer to internal planes, reducing junction temperature and increasing long-term reliability.
Overcurrent and ESD Protection in Industrial USB Hub Designs
Overcurrent Protection
Overcurrent protection ICs isolate downstream ports during fault conditions such as short circuits or device malfunction. Industrial-grade USB hub PCBs implement per-port current limiting to prevent upstream host shutdown and to comply with USB specification requirements.
ESD Protection Strategy
Transient voltage suppressor (TVS) diodes placed near USB connectors mitigate electrostatic discharge events. Proper placement reduces trace inductance between the connector and protection device, which attenuates transient energy before it propagates into the controller IC.
Selecting the Right USB Hub Circuit Board for Industrial Applications
For OEM buyers evaluating USB hub PCBA suppliers, the PCB design and assembly quality directly affect product lifecycle stability.
Engineering Evaluation Checklist
- PCB Stack-Up: Four-layer or higher with dedicated reference planes
- Controller Selection: Verified USB 3.0 certified hub IC (GL3520, VL817, etc.)
- Impedance Control: Manufacturer impedance test reports
- Power Components: Industrial-grade inductors and MOSFETs
- Capacitors: Tier-1 brands with X7R dielectric for stability
- SMT Process: AOI inspection and X-ray verification for BGA/QFN devices
- EMI Shielding: Ground stitching vias and shielding cans if required
Conclusion: Engineering as a Competitive Differentiator for OEM USB Hub Modules
A USB hub circuit board is not a commodity PCB assembly but a high-speed signal platform that must satisfy strict impedance, EMI, and power integrity constraints. OEM buyers should prioritize multilayer stack-ups, certified hub controllers, and validated impedance control over unit cost optimization.
For manufacturers, investing in signal integrity simulation, controlled impedance fabrication, and robust power protection architecture differentiates industrial USB hub modules in enterprise and embedded markets.
