The Engineering Behind High-Performance NVMe Enclosures

  Encapsulating NVMe protocol traffic into USB or Thunderbolt transport layers introduces measurable latency, signal integrity degradation, and power delivery constraints. An NVMe enclosure functions as a protocol translation platform that bridges PCIe lanes to external serial buses, rather than a passive storage container.



  The bridge controller architecture, PCB stack-up, and thermal conduction path define the upper bound of sustained throughput and long-term reliability.



  The Role of the Bridge Controller in an NVMe Enclosure



  PCIe to USB Protocol Translation



  NVMe SSDs communicate using PCIe lanes with low latency and high parallelism. When deployed in an external enclosure, the PCIe data stream must be converted into USB or Thunderbolt transport packets by a bridge controller.



  Bridge controllers perform:



  •   PCIe lane mapping (x1/x2 PCIe Gen3 or Gen4)

  •   NVMe command translation into USB mass storage protocols

  •   Buffering and flow control to mitigate host-side bus scheduling delays



  The performance stability of any NVMe enclosure is dictated not by the SSD inside, but by the bridge controller integrated onto the PCB. This ASIC (Application-Specific Integrated Circuit) handles the critical task of translating the NVMe protocol (carried over PCIe lanes) into USB Attached SCSI Protocol (UASP) packets.



  For 10Gbps solutions, the Realtek RTL9210B has become the industrial standard. Unlike earlier generations, the RTL9210B features a low-power architecture that significantly reduces the "idle heat" generated when the drive is not actively transferring data, thereby extending the thermal throttle threshold.



  In contrast, high-throughput applications requiring USB 3.2 Gen 2x2 (20Gbps) speeds typically utilize the ASMedia ASM2364. While this controller doubles the theoretical bandwidth to approximately 2,000 MB/s, it introduces a higher thermal envelope. Consequently, enclosures utilizing the ASM2364 require an optimized aluminum chassis design with increased surface area to prevent controller-induced latency spikes. Engineers must also verify firmware stability, as improper sleep-wake cycling handling in budget controllers can lead to logical drive disconnection on macOS or Linux platforms.



  Bridge Controller Specifications (Quick Reference)



  Realtek RTL9210B



  •   Supports USB 3.2 Gen 2 (10Gbps) and PCIe Gen3 x2

  •   Moderate power consumption, widely deployed in mid-range enclosures

  •   Broad OS compatibility but limited peak throughput



  ASMedia ASM2364 (Note: Updated from ASM2362 for 20Gbps accuracy)

Magnetic Fingerprint Encrypted M.2 NVMe SSD Enclosure (10Gbps)

  •   Supports USB 3.2 Gen 2x2 (20Gbps) and PCIe Gen3 x4

  •   Higher throughput efficiency with lower protocol overhead

  •   Increased power dissipation requiring stronger thermal design



  Intel JHL7440 (Thunderbolt 3 Controller)



  •   Enables PCIe tunneling with near-native NVMe latency

  •   Higher BOM cost and power consumption

  •   Superior compatibility in professional workflows



  Protocol Overhead and Throughput Efficiency



  Theoretical bandwidth does not translate directly into sustained performance:

  Interface   Theoretical Bandwidth   Real Sustained Throughput
  USB 3.2 Gen 2   10 Gbps   ~900–1050 MB/s
  USB 3.2 Gen 2x2   20 Gbps   ~1800–2100 MB/s
  Thunderbolt 3/4   40 Gbps   2800–3500 MB/s


  Protocol overhead, host scheduling latency, and bridge buffering determine effective throughput.



  Thermal Dissipation: Why Passive Cooling Matters



  Thermal Throttling in NVMe SSDs



  NVMe SSD controllers integrate temperature sensors that enforce thermal throttling once junction temperature exceeds ~70–85°C. Throttling reduces PCIe link speed and write queue depth, causing sustained throughput collapse.



  CNC Aluminum Chassis as a Passive Heat Sink



  An aluminum enclosure provides a conduction path from the SSD controller to ambient air:



  •   High thermal conductivity (≈200 W/m·K)

  •   Large surface area for convection

  •   Structural rigidity for PCB grounding and EMI control



  Plastic enclosures exhibit thermal conductivity below 0.3 W/m·K, trapping heat and accelerating throttling.



  Thermal Pads and Conduction Paths



  Thermal pads create a low-resistance conduction interface between the SSD controller and the enclosure shell. Pad thickness and compression force determine contact thermal resistance.



  Key parameters:



  •   Thermal conductivity: 6–12 W/m·K

  •   Thickness: 0.5–2.0 mm

  •   Compression ratio: 30–50%



  Improper pad selection increases junction temperature by >15°C under sustained workloads.



  Interface Standards: USB-C vs Thunderbolt 3/4



  Physical Connector vs Transport Protocol

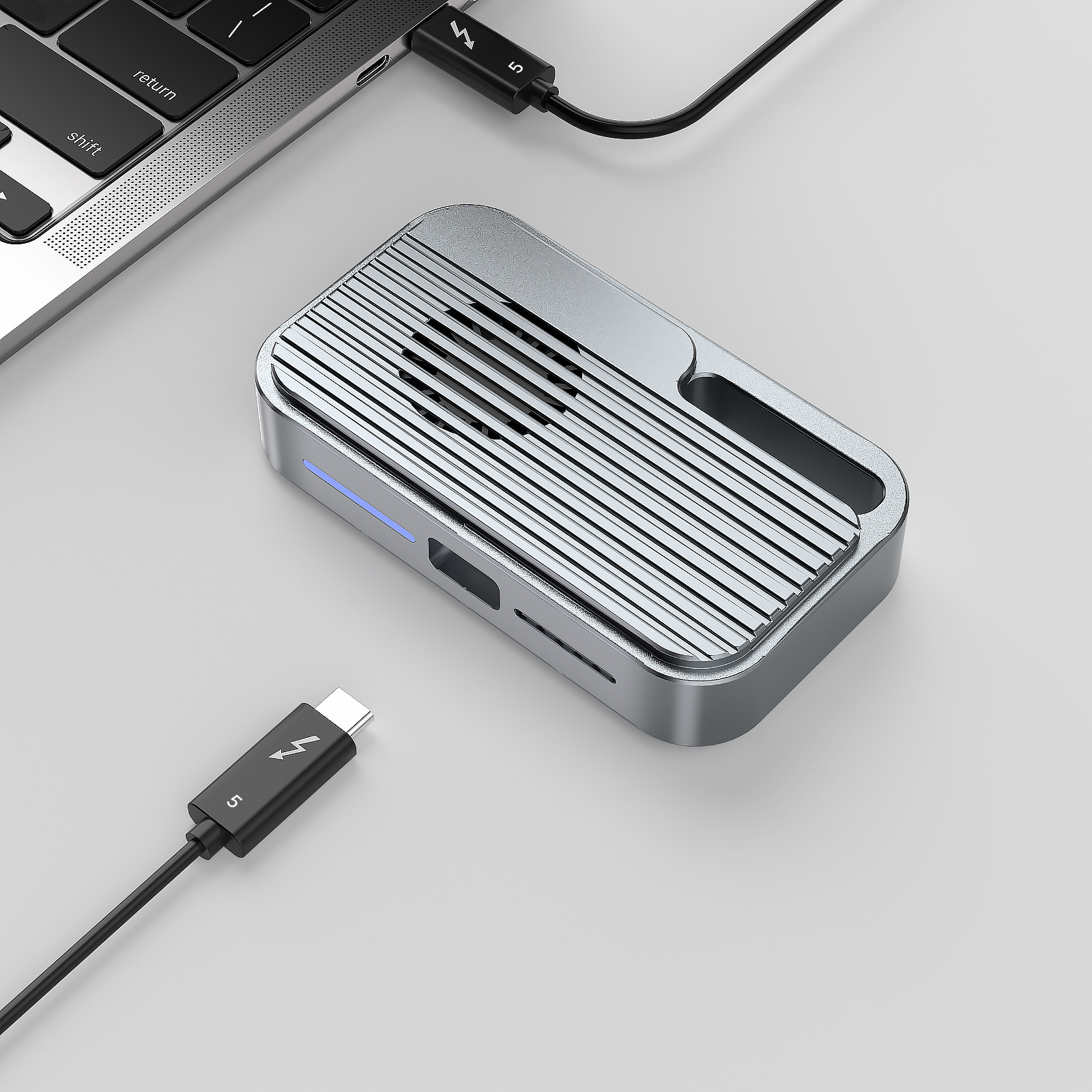

80Gbps M.2 NVMe Thunderbolt 5 SSD Enclosure

  USB Type-C defines the connector geometry, not the data protocol. Transport protocols include:



  •   USB 3.2

  •   USB4

  •   Thunderbolt 3/4



  PCIe Tunneling in Thunderbolt Enclosures



  Thunderbolt controllers tunnel PCIe packets directly to the host, bypassing USB protocol translation. This reduces latency and CPU overhead, enabling near-native NVMe performance.



  However, Thunderbolt enclosures require:



  •   Active controllers

  •   High-quality PCB stack-up

  •   Strict signal integrity validation



  Critical Features for Industrial and Professional Usage



  Tool-Free vs Screw-Secured Mechanical Design



  Tool-free latching systems reduce assembly time but introduce mechanical instability under vibration. Screw-secured enclosures maintain consistent thermal pad pressure and EMI shielding continuity, preferred in industrial deployments.



  Overcurrent Protection and PCB Power Integrity



  Industrial enclosures integrate:



  •   Power switches with per-port current limiting

  •   TVS diodes for ESD suppression

  •   Multi-layer PCB stack-up for low impedance power planes



  Power integrity influences SSD controller stability during peak write bursts.



  Conclusion: Engineering Constraints Define NVMe Enclosure Performance



  An NVMe enclosure is constrained by protocol translation overhead, thermal dissipation efficiency, and PCB power integrity. High-performance designs prioritize bridge controller efficiency, aluminum thermal conduction, and multilayer PCB architectures rather than cosmetic industrial design.



  For OEM applications, validated impedance control, thermal simulation, and controlled assembly processes differentiate industrial-grade NVMe enclosures from consumer accessories.
