Breaking the distance limit of USB cables: principles, problems and solutions
USB connections are very popular, but the distance limit of the cable often affects their use. However, there are special solutions on the market to overcome this problem. This guide covers the scientific principles of USB length limit to practical solutions to help you extend your connection to a longer distance.
I. USB cable length limit and reasons
USB cables have many advantages, but the length limit varies from version to version. The maximum cable lengths and data transfer speeds for different versions are as follows:
USB 1.1: 5 meters (16.4 feet), 12 Mbps
USB 2.0: 5 meters (16.4 feet), 480 Mbps
USB 3.0: 3 meters (9.8 feet), 5 Gbps
USB 3.1: 3 meters (9.8 feet), 10 Gbps
USB 3.2: 0.8 meters (2.6 feet), 20 Gbps
USB4: 0.8 meters (2.6 feet), 40 Gbps
These limits are designed to maintain signal quality and ensure data transfer speeds. Exceeding the limits may cause signal attenuation, reduced speeds, and connection problems.
II. The scientific principles behind USB distance limits
1. Signal transmission characteristics: USB cables contain four independent conductors. Electromagnetic resistance during signal transmission will distort the signal. The longer the distance, the more severe the signal attenuation, and the devices cannot communicate normally.
2. Other key factors
Signal impedance mismatch: Impedance mismatch between conductors will reflect signals and produce echo interference. The longer the cable, the more serious the problem.
Electromagnetic interference (EMI): External electromagnetic energy can destroy data signals, and telephone equipment, motors, etc. will produce noise that is difficult to filter.
Inefficient power transmission: Long cables cannot provide enough current to devices, resulting in intermittent disconnection, voltage drop, and hardware problems.
Poor structural quality: Low-quality cables do not use appropriate technology to resist the threat of signal attenuation.
Data transfer speed: Signal attenuation and other factors will reduce USB data transfer speed as the cable length increases, and the impact is more obvious in high-speed standards.
III. Consequences of using too long cables
Exceeding the recommended length threshold of the USB standard will cause the following problems:
Connection failure: The device disconnects randomly or cannot be fully connected.
Unstable connection: The device disconnects in an infinite loop after a short connection, and the cable needs to be reinstalled.
Slow data transfer speed: Read and write speeds are greatly reduced, and large file transfers fail.
Signal errors cause crashes: Damaged data transfers cause freezes, input/output failures, and operating system crashes.
Compatibility issues: Unable to detect connected devices, USB standards will give up if violations are detected.
IV. Tips for using reliable USB cables
1. Use thick and high-quality USB cables, tightly twist the wires, and install a ferrite inductor at one end to suppress EMI interference.
2. Keep the cable away from potential interference sources. USB 3.0 cables require more careful consideration of EMI issues.
3. Make sure the cable takes the most direct path, avoid sharp bends or squeezing, and gentle turns can limit crosstalk and signal reflections.
4. Connect the device to the host root USB port as much as possible to avoid composite interference introduced by the auxiliary controller.
5. Consider using optical isolation at the cable endpoints, and install a signal filtering module when electrical noise cannot be avoided.
V. Ways to break through the USB length limit
1. Use USB active cables
Working principle: Active USB cables have embedded micro-active electronic circuits, and small relay circuits arranged at intervals inside, which can sense and repair attenuated signals and maintain signal integrity.
Extension effect:
USB 2.0: up to 30 meters (98 feet), standard is 5 meters (16.4 feet)
USB 3.0 and 3.1: up to 18 meters (59 feet), standard is 3 meters (9.8 feet)
USB 3.2 and USB 4: up to 3 meters (9.8 feet), standard is 0.8 meters (2.6 feet)
2. Use USB hubs and repeaters
USB hub method: can receive, amplify and regenerate USB signals, extend the transmission distance by inserting a hub, and expand the coverage by daisy-chaining multiple hubs. However, there are bandwidth limitations, connection layer limitations and stability issues.
USB repeater method: connect inline along the overly long cable and transmit before the signal attenuates. Strategically placed enhanced repeaters can simply and cost-effectively extend the distance, but be careful not to let peripheral devices consume too much current.
Limitations of basic USB range extenders:
USB hubs: May introduce points of failure and bandwidth bottlenecks, typically each hub can only extend the range by 5-10 meters.
USB boosters/repeaters: Similar to hubs, multiple repetitions may cause signal attenuation.
USB extenders: Come in pairs and can extend the connection range, typically up to 100 meters or more, but may reduce device functionality, affect throughput, and have different costs and setup complexity.
3. Use Ethernet USB to achieve maximum transmission range
USB Ethernet extender: Converts USB signals to Ethernet protocols and transmits data through standard Cat5 or better Ethernet cables. It can extend the connection to 100 meters, but this solution is not currently available.
Wireless USB extender: Consists of a transmitter and a receiver, uses radio frequency (RF) technology to wirelessly transmit USB signals without physical cables, with a typical range of 10 to 30 meters, can support multiple devices through a single receiver, and is useful when cables cannot be laid.
How the Ethernet USB solution works: The USB peripheral is plugged into the receiving unit, and its signal is encapsulated into an IP packet and transmitted via an Ethernet cable to the transmitter expansion box on the host PC, which then extracts the data and forwards it to the host.
Benefits of using Ethernet to connect USB:
Using CAT5e or CAT6 Ethernet patch cables can extend wired USB connections to more than 100 meters, breaking through the hub/repeater limitations.
Using existing Ethernet cable infrastructure, it is more versatile.
Transmission inherits Ethernet's strong noise immunity, which is important for industrial environments.
Peripherals can be concentrated in a single location.
High-throughput devices can still obtain USB 3.0 rated speeds of about 5 Gbps.
Important factors for USB Ethernet implementation:
Conversion boxes should maintain full USB 3.0 performance specifications without affecting latency.
It is recommended to use Gigabit Ethernet bandwidth overhead to avoid bottlenecks.
Extended network segments should use rugged Ethernet cabling with properly terminated connectors.
When installing mission-critical long-distance cabling, work with qualified IT infrastructure experts.
4. Break through connectivity limitations with fiber-optic USB

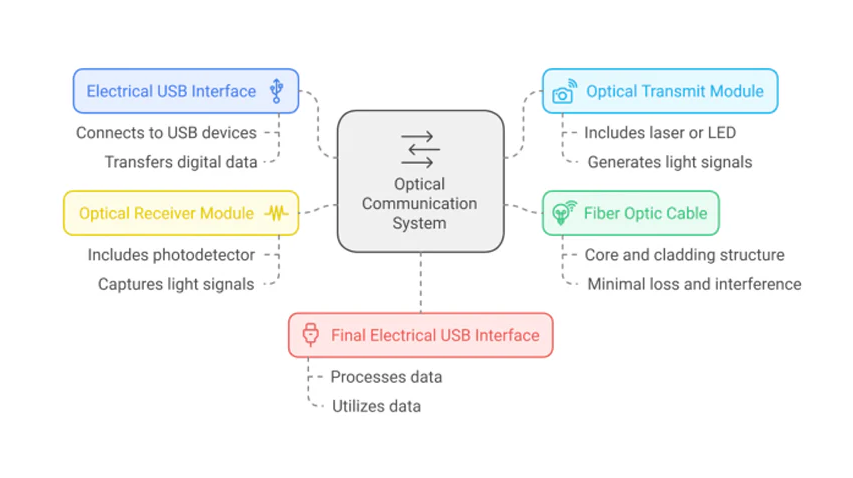

How it works: Convert USB electrical signals into light pulses, transmit them through fiber-optic lines, and convert them back into electrical signals at the receiving end, overcoming the distance limitations of traditional USB protocols.
Reasons for using fiber:
USB 2.0 and USB 1.1 connections can be extended to more than 450 meters, with a single test of up to 2 kilometers.
Immunity to electrical interference or lightning strikes, with strong resilience.
Isolated from ground loop currents, no noise sources are introduced.
Fiber segments can be physically cut or damaged and then re-spliced and restored.
Dedicated optical USB infrastructure requirements:
Select matching optical transceiver modules, available in desktop box or industrial-grade integrated models, and consider the optical budget.
Take appropriate Class 1 laser safety measures and never look directly into unterminated modules.
Run a multimode fiber line with enough core, typically 50 μm and above, ensuring the bend radius exceeds the manufacturer's specifications.
Seek professional assistance from a certified fiber optic data communications contractor for initial installation.
VI. Conclusion
Hopefully, the science behind the inherent distance limitations of USB cables is now clearer, and advanced solutions can be applied to overcome these limitations. Basic hubs/repeaters can temporarily solve the problem, but industrial-grade options such as active copper cables, Ethernet tunnel I/O, and fiber optic transceivers require deeper integration to fully utilize the convenience of USB over long distances.
