Name: DEM040M1 USB-C 20Gbps M.2 SSD Enclosure | NVMe SATA Dual Protocol
Brand: Official Website
SKU: PEC-DEM040
Availability: InStock
Rating: 5 (1 reviews)

SSD & HDD Enclosures

Home > SSD & HDD Enclosures

DEM040M1 USB-C 20Gbps M.2 SSD Enclosure | NVMe SATA Dual Protocol

Description Specifications FAQ

Description

　　Product Description

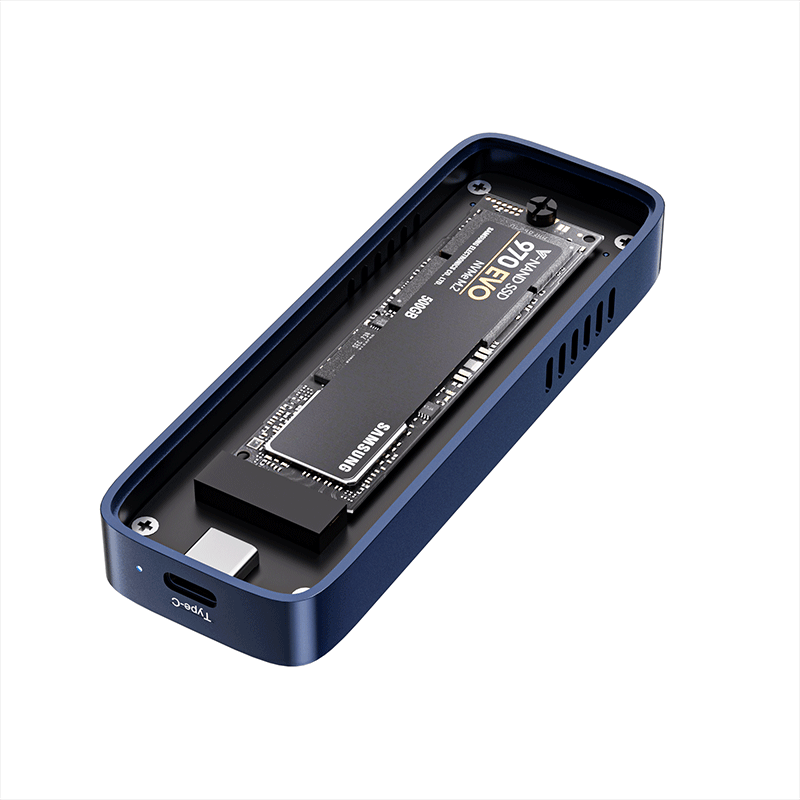

　　The DEM040M1 is a USB-C to M.2 M-Key SSD enclosure designed for high-speed external storage applications. It supports USB 3.2 Gen 2×2 transmission with a theoretical transfer rate of up to 20 Gbps, making it suitable for fast file transfer, data backup, video editing storage, system migration, and portable SSD solutions.

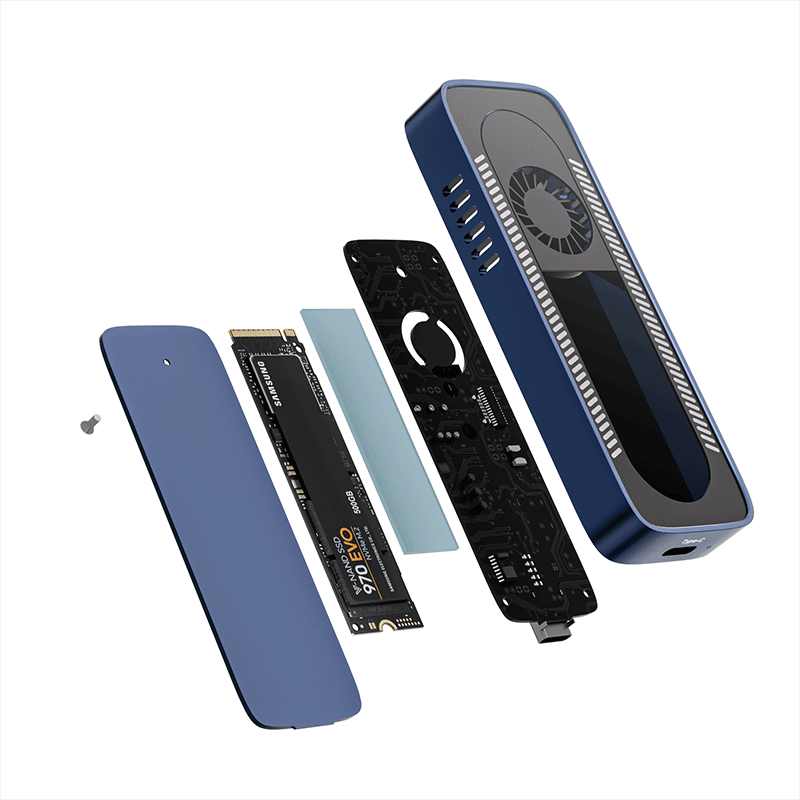

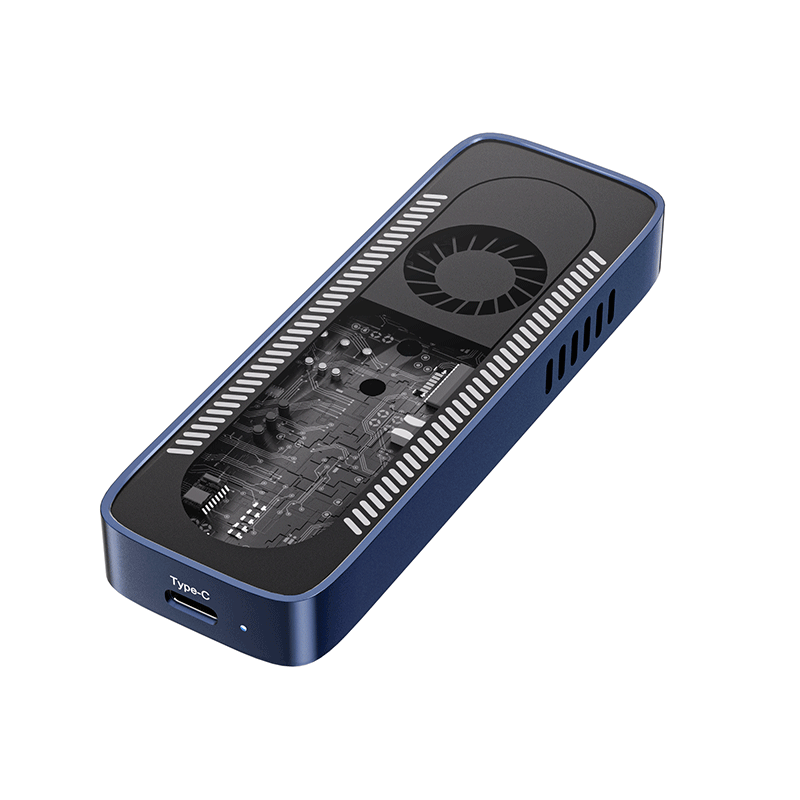

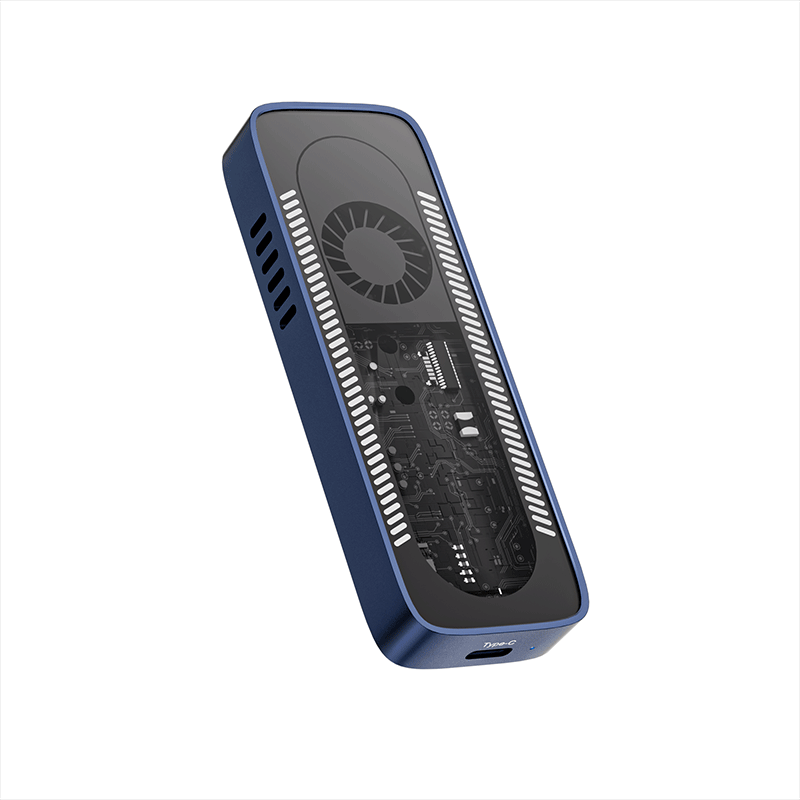

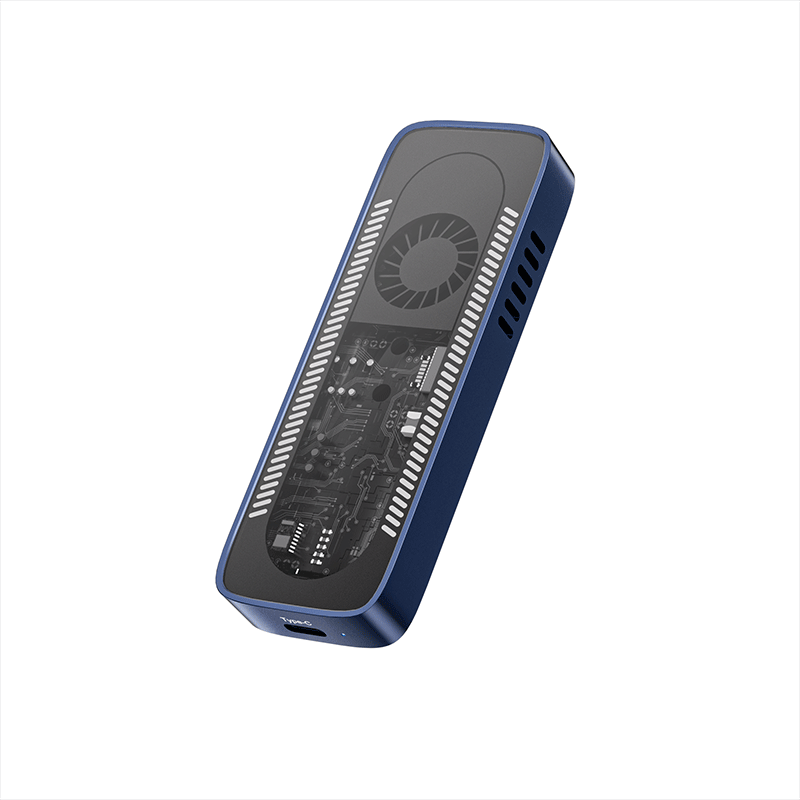

　　The enclosure supports both NVMe and AHCI SATA M.2 SSD protocols and is compatible with common SSD lengths including 2230, 2242, 2260, and 2280. With an aluminum alloy housing and built-in cooling fan, the DEM040M1 helps improve heat dissipation during continuous data transmission.

　　A status LED indicates connection and data activity, while UASP support helps deliver stable and efficient transfer performance when used with compatible host devices and operating systems.

Specifications

Item	Detail
Model	DEM040M1
Product Type	USB-C to M.2 M-Key SSD Enclosure
Upstream Port	1 × USB-C
USB Standard	USB 3.2 Gen 2×2
Max Transfer Rate	Up to 20 Gbps
Backward Compatibility	USB 3.2 Gen 2 / USB 3.0 / USB 2.0
SSD Interface	1 × M.2 M-Key SSD Slot
Supported SSD Protocols	NVMe / AHCI SATA M.2
PCIe Support	PCIe Gen3 x2
Supported SSD Sizes	2230 / 2242 / 2260 / 2280
Housing Material	Aluminum Alloy
Cooling	Built-in Cooling Fan
Protocol Support	UASP
Dimensions	113 × 39 × 13.3 mm
OS Support	Windows 7 / 8 / 10 / 11, macOS X 10.X and later, Linux, Android
Compatible Devices	Laptops, desktops, tablets, smartphones with compatible USB-C support
Included Cable	USB-C to USB-C Data Cable, 25 cm

FAQ

　　Q1: What SSD types does the DEM040M1 support?

　　A1: The DEM040M1 supports M.2 M-Key SSDs with NVMe or AHCI SATA protocol. Supported SSD lengths include 2230, 2242, 2260, and 2280.

　　Q2: What is the maximum transfer speed?

　　A2: The enclosure supports USB 3.2 Gen 2×2 with a theoretical transfer rate of up to 20 Gbps. Actual speed may vary depending on the SSD, host device, cable, operating system, and USB port capability.

　　Q3: Does it support heat dissipation?

　　A3: Yes. The DEM040M1 uses an aluminum alloy housing and includes a built-in cooling fan to help dissipate heat during high-speed or continuous data transfer.

　　Q4: Is it compatible with Windows and macOS?

　　A4: Yes. It supports Windows 7 / 8 / 10 / 11, macOS X 10.X and later, Linux, and Android, depending on the host device’s USB-C and storage compatibility.

　　Q5: Is a cable included?

　　A5: Yes. The product includes a USB-C to USB-C data cable with a total length of 25 cm, along with a thermal pad for SSD installation.
